Kettle Reboiler Type Heat Exchanger

In modern industrial heat-transfer systems, kettle reboiler heat exchangers play a vital role in ensuring efficient and controlled thermal operations. These units are extensively used across chemical, petrochemical, oil & gas, pharmaceutical, and food processing industries for applications such as distillation, evaporation, and liquid separation. At United Heat Exchangers, we manufacture high-performance kettle reboilers engineered to deliver superior heat transfer, long service life, and dependable performance. Whether you are upgrading an existing unit or installing a new thermal system, our kettle reboilers are built to meet demanding industrial requirements with precision and reliability.

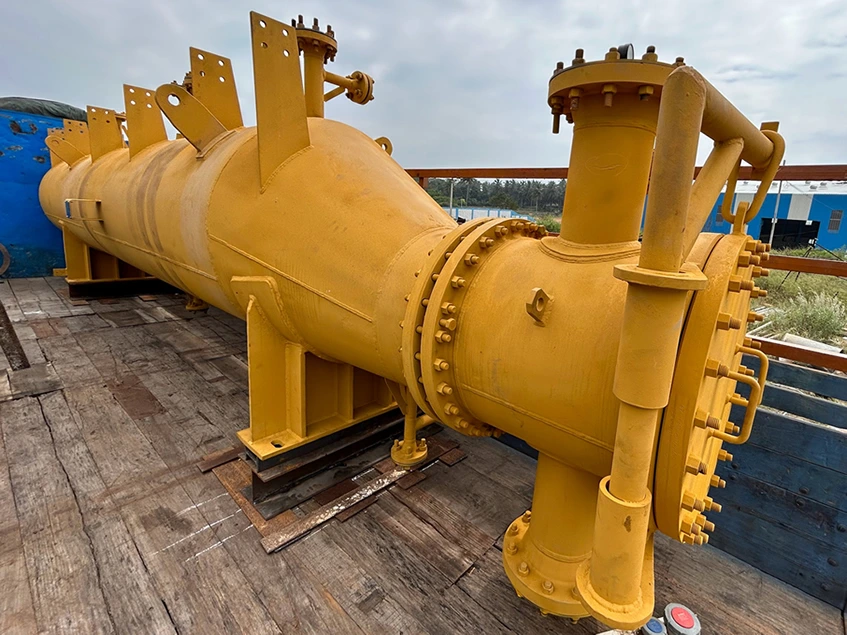

A kettle reboiler is a specialized shell-and-tube-type heat exchanger primarily used at the bottom of distillation columns to supply the heat required for vaporizing a portion of the process liquid. It consists of a large shell that holds a liquid pool and an internal tube bundle carrying the heating medium, usually steam or hot oil. Heat is transferred indirectly through the tube walls, preventing contact between the heating and process fluids. Due to its rounded shell shape and liquid bath configuration, the equipment resembles a traditional kettle, which gives it its name. This indirect heating method ensures enhanced safety, precise temperature control, and stable operation.

1. High Heat Transfer Efficiency

Kettle reboilers are designed to provide rapid and uniform heat distribution, ensuring consistent boiling and stable operating conditions.

2. Wide Applicability

They are suitable for multiple processes, including distillation, evaporation, solvent recovery, and thermal separation across various industries.

3. Rugged and Compact Construction

Despite their compact footprint, kettle reboilers are built for heavy-duty industrial use and can withstand high pressures and temperatures.

4. Operational Stability

Advanced internal layouts allow smooth operation even during fluctuations in load, pressure, and temperature.

5. Energy Conservation

Optimized thermal design minimizes heat losses and reduces steam or hot-oil consumption, resulting in lower operating costs.

The operation of a kettle reboiler is based on indirect heat transfer and continuous vapor generation. The process functions as follows:

1. Heating Medium Circulation:
Steam or hot oil flows through the shell side or tube side depending on design. This fluid serves as the heat source.
2. Process Fluid Heating:
The liquid intended for vaporization is held in the large kettle-shaped chamber surrounding the tube bundle.
3. Heat Transfer:
Thermal energy passes through the tube walls and is absorbed by the surrounding liquid, raising its temperature.
4. Vapor Formation:
Once the boiling point is reached, part of the liquid vaporizes. The vapors rise and are sent back to the distillation column for separation.
5. Recirculation:
Unvaporized liquid remains in the kettle and continues circulating for further heating, maintaining a stable boiling process.

This continuous cycle ensures a consistent vapor supply to the column and stable product separation.

Heat Duty Capacity

• Small systems: 0.2 – 1.5 MW
• Medium-scale industrial units: 1.5–15 MW
• Large refinery systems: 15–50 MW
• Mega distillation units: Up to 100 MW

Kettle reboilers can be engineered for heat duties ranging from 0.2 MW to above 50 MW depending on plant capacity.

Flow Rate Ranges

Tube-Side (Process Fluid):

• Light hydrocarbons: 10 – 150 m³/hr
• Heavy oils: 5 – 60 m³/hr
• Aqueous solutions: 15 – 200 m³/hr

Shell-Side (Heating Medium):

• Steam: 500 – 12,000 kg/hr
• Hot oil: 5 – 80 m³/hr

Operating Temperature & Pressure

• Saturated steam pressure: 3–15 bar
• Superheated steam: Up to 30 bar
• Hot-oil operating temperature: 200°C – 350°C
• Process temperature range: –20°C to 300°C

Tube Bundle Parameters

• Tube diameters: 19 mm, 25 mm, 32 mm
• Tube lengths: 2–6 m
• Tube count: 100–3,000
• Boiling heat transfer coefficient: 400 – 2,000 W/m²·K

Vaporization & Pressure Drop

• Typical vaporization rate: 10–50%
• High-duty refinery units: Up to 70% boil-up
• Tube-side pressure drop: < 1 bar
• Shell-side pressure drop: < 0.2 bar

1. Thermosyphon Kettle Reboiler

Operates using natural circulation driven by density differences inside the fluid. No external pump is required, making it energy-efficient and low-maintenance.

2. Forced Circulation Kettle Reboiler

Uses a mechanical pump to control fluid movement. Suitable for high-heat duties, viscous fluids, and precise process control.

3. Vertical & Horizontal Kettle Reboilers

While vertical units are most common, horizontal designs are also used where plant layout or space limitations demand alternate configurations.

1. Lower Energy Consumption
Their optimized thermal design ensures efficient utilization of steam or hot oil.
2. Superior Process Control
Stable heat input results in better separation efficiency in distillation columns.
3. Application Flexibility
Capable of handling a wide range of fluids, operating pressures, and temperatures.
4. Minimal Maintenance
Reduced fouling and corrosion extend service life and decrease maintenance costs.
5. Space-Saving Design
Compact structure allows easy integration into both new and existing plants.
6. High Operational Safety
Indirect heat transfer and built-in safety controls enhance plant safety and process reliability.

• Chemical Processing: Distillation, solvent recovery, and liquid separation
• Petrochemical & Oil Refineries: Crude and fractionation columns
• Pharmaceutical Manufacturing: Evaporation and concentration
• Food & Beverage Industry: Heating, pasteurization, and evaporation
• Energy & Power Sector: Waste heat recovery and district heating

1. Proven Engineering Expertise
Backed by years of industrial manufacturing experience.
2. Custom-Designed Solutions
Each kettle reboiler is built according to specific process parameters.
3. Energy-Optimized Designs
Engineered to deliver maximum heat transfer with minimal energy input.
4. Long-Lasting Construction
Manufactured using high-grade materials with excellent corrosion resistance.
5. Reliable After-Sales Support
Complete technical assistance from design to commissioning.
6. Competitive Pricing
Premium quality equipment offered at cost-effective prices.
7. On-Time Delivery
Strict project deadlines are consistently met.

United Heat Exchangers strictly follows international quality and safety standards, including

1. ASME Section VIII for pressure vessel design and fabrication
2. CE Certification for European safety and performance compliance
3. TEMA Standards for shell-and-tube exchanger construction
4. ISO 9001 & ISO 14001 for quality management and environmental safety

Kettle reboiler heat exchangers are an essential part of high-performance thermal systems used in critical industrial applications. With superior heat transfer efficiency, reliable operation, low maintenance, and excellent safety standards, they ensure consistent production quality and long-term cost savings. United Heat Exchangers delivers custom-engineered kettle reboiler solutions that meet the highest standards of industrial performance and durability.

1. What is the main function of a kettle reboiler?
It provides heat to partially vaporize the bottom liquid of a distillation column.
2. How does a kettle reboiler work?
It uses indirect heat from steam or hot oil to boil the process liquid inside a large shell chamber.
3. What are the key advantages of kettle reboilers?
High efficiency, excellent control, low maintenance, and wide operating range.
4. Which industries commonly use kettle reboilers?
Chemical, oil & gas, pharmaceuticals, food processing, and energy sectors.
5. What is the difference between thermosyphon and forced circulation designs?
Thermosyphon uses natural circulation, while forced circulation uses a pump.
6. Can kettle reboilers handle viscous or corrosive fluids?
Yes, with proper material selection and design modifications.
7. How long does a kettle reboiler last?
With proper maintenance, it can operate reliably for several decades.
8. Are United Heat Exchangers’ kettle reboilers customizable?
Yes, all units are built to match customer processes and site conditions.
