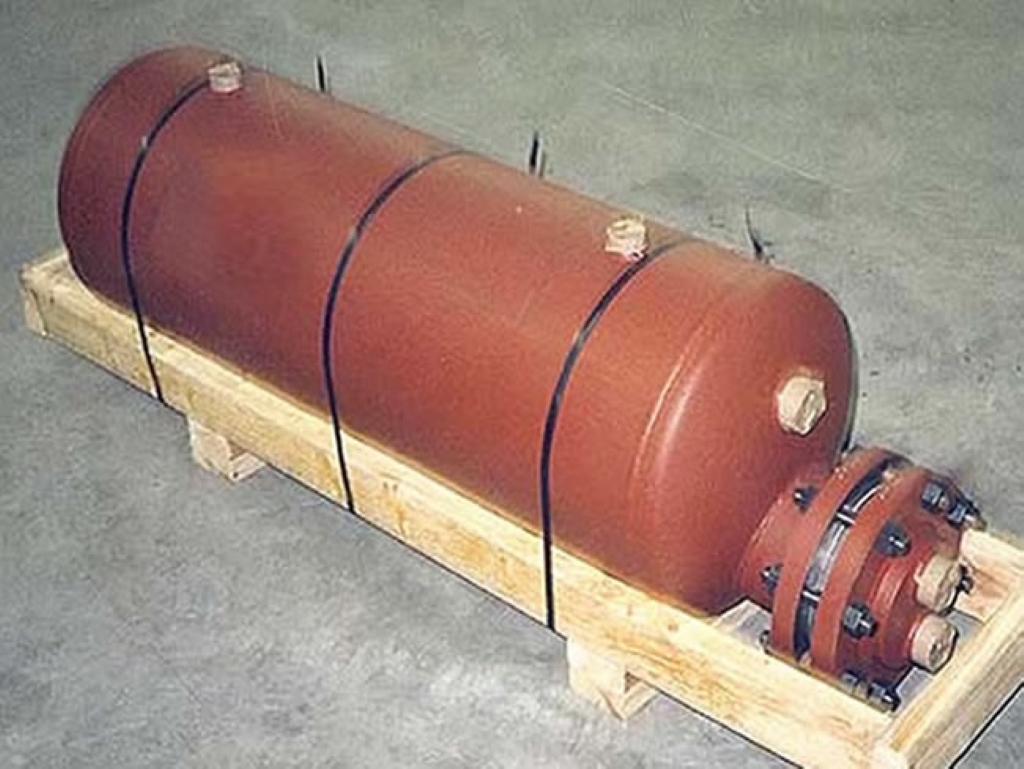

Marine Heat Exchanger

A marine heat exchanger is a vital component used in the cooling systems of marine engines and onboard equipment. These heat exchangers transfer heat between two fluids—usually seawater and a coolant—without allowing them to mix. Marine heat exchangers are vital components that support the efficiency, dependability, and durability of propulsion and auxiliary systems in maritime operations. In this comprehensive guide, we explore the working principles, types, design considerations, materials, applications, advantages, challenges, maintenance, and technological advancements related to marine heat exchangers.

Marine heat exchangers operate based on the fundamental principle of heat transfer: conduction and convection. A hot fluid (such as engine coolant) flows through one set of passages, while a cooler fluid (usually seawater) flows through a separate set of passages. Heat is transferred from the hot fluid to the cooler fluid, resulting in a decrease in the temperature of the hot fluid.

• Parallel Flow: Both the hot and cold fluids enter the heat exchanger from the same end and flow in the same direction.
• Counterflow: This arrangement offers greater heat transfer efficiency by maintaining a larger temperature gradient between the fluids over the length of the exchanger.

Marine heat exchangers are used to:

• Cool engine jacket water and lubricating oil
• Regulate temperature in HVAC systems
• Support desalination and refrigeration systems
• Prevent overheating of onboard electronics and generators

Without effective cooling, engines and other marine systems would overheat, leading to performance degradation, increased emissions, and potential system failure.

• Shell and Tube Heat Exchangers
  • Consist of multiple tubes contained within a cylindrical outer shell.
  • One fluid flows through the interior of the tubes, while the other flows around the tubes within the shell.
  • Durable and easy to maintain, ideal for high-pressure applications.
• Plate Heat Exchangers (PHE)
  • Made up of stacked plates that create flow channels for fluids.
  • Compact and efficient, suitable for limited-space applications.
  • High heat transfer coefficient but prone to fouling.
• Tube-in-Tube Heat Exchangers
  • Consist of one tube inside another.
  • Coolant flows through the inner tube and seawater through the outer tube.
  • Common in small boats and auxiliary systems.
• Keel Coolers
  • Heat exchangers externally mounted on the vessel’s hull.
  • Use seawater directly to cool engine fluids without pumping it inside.
  • Low maintenance but less efficient in warm water.

Marine heat exchangers must resist corrosion, biofouling, and thermal stress. Common materials include:

• Copper-Nickel
  Excellent corrosion resistance in seawater.
• Titanium
  Highly corrosion-resistant, lightweight, expensive.
• Stainless Steel
  Durable but may corrode in salty environments without proper treatment.
• Bronze and Brass
  Often used in small boats due to cost-effectiveness.

Material selection depends on the fluid types, operating conditions, and maintenance capacity.

Marine heat exchangers are used in various systems:

• Main Engine Cooling: Involves the cooling of jacket water and lubricating oil to maintain optimal engine temperature and ensure reliable performance.
• Auxiliary Engine Systems: Generator cooling, hydraulic system regulation.
• HVAC Systems: Climate control on passenger vessels and cargo ships.
• Desalination Plants: Assist in seawater distillation and reverse osmosis.
• Refrigeration Systems: Maintain temperature for perishable goods.

When designing or selecting a marine heat exchanger, consider:

• Heat Load: Determines the size and capacity.
• Fluid Compatibility: To avoid corrosion or scaling.
• Flow Rate and Pressure Drop: Ensures effective cooling without system disruption.
• Space Constraints: Especially important on compact vessels.
• Maintenance Access: Easy disassembly for cleaning and inspection.
• Fouling Factors: Account for biofouling and scaling over time.

• Heat Transfer Coefficient (U): Measures the effectiveness of heat transfer.
• Pressure Drop: Lower is better for pump efficiency.
• Effectiveness (ε): The ratio of the actual heat transfer achieved to the maximum possible heat transfer under ideal conditions.
• Thermal Conductivity: Depends on materials used in construction.
• Approach Temperature: The difference between outlet and inlet temperatures.

Routine Maintenance Includes:

• Cleaning seawater passages to eliminate marine growth and accumulated debris.
• Descaling tubes or plates affected by mineral deposits.
• Inspecting for leaks and corrosion.
• Replacing gaskets and seals as needed.
• Monitoring temperature and pressure differentials.

Common Issues:

• Biofouling: Growth of algae, barnacles, and mussels in seawater passages.
• Scaling: Hard mineral deposits on heat transfer surfaces.
• Erosion and Corrosion: Especially in high-flow and salty environments.
• Gasket Failures: Common in plate-type exchangers.

Proactive maintenance and the use of protective coatings can minimize these issues.

• Efficient Cooling: Maintains optimal operating temperatures.
• Space-Saving Designs: Especially plate-type and keel coolers.
• Energy Efficient: Transfers heat without external energy input.
• Corrosion Resistance: Designed for harsh marine environments.
• Versatile Applications: Suitable for propulsion, auxiliary, and comfort systems.

• Corrosion and Biofouling: Requires regular maintenance.
• Fouling and Scaling: Reduces thermal efficiency.
• Space Constraints: Some types may be hard to install or maintain.
• Initial Cost: Titanium and high-performance units are expensive.
• Limited Lifespan: Especially if not maintained regularly.

• Smart Monitoring Systems: Track temperature, flow rate, and fouling in real-time.
• Self-Cleaning Designs: Reduce downtime and manual labor.
• Advanced Coatings: Reduce biofouling and corrosion.
• Modular Heat Exchangers: Easier to replace and upgrade.
• Additive Manufacturing (3D Printing): Enables complex geometries for enhanced heat transfer.

• Efficient heat exchangers: Reduce fuel consumption by optimizing engine performance.
• Lower emissions: Due to better temperature control.
• Extended equipment lifespan: Reduces waste and resource consumption.
• Eco-friendly materials and coatings: Minimize environmental impact.

Marine heat exchangers are critical components in ensuring the efficiency, reliability, and environmental compliance of maritime systems. Whether used in propulsion, auxiliary, or comfort systems, these exchangers protect vital equipment from overheating and enable smooth operations at sea. By understanding the types, materials, maintenance needs, and design considerations, ship owners and engineers can make informed decisions to ensure long-term performance and cost-effectiveness. As marine systems continue to evolve with environmental regulations and technological demands, heat exchangers will remain central to achieving energy-efficient and sustainable operations.

1. What is the purpose of a marine heat exchanger?
   It transfers heat from engine fluids to seawater to prevent overheating.


2. How often should marine heat exchangers be cleaned?
   Typically every 6 to 12 months, depending on operating conditions.


3. What materials are best for saltwater resistance?
   Copper-nickel, titanium, and treated stainless steel are ideal.


4. Can marine heat exchangers be used in freshwater systems?
   Yes, though material requirements and fouling concerns differ.


5. What are signs of a failing heat exchanger?
   Overheating, fluid leaks, pressure drops, and reduced cooling efficiency.


6. Are plate heat exchangers better than shell and tube?
   Depends on the application; plates are compact and efficient, while shell and tube units handle higher pressures.


7. Can you retrofit an old vessel with modern heat exchangers?
   Yes, with appropriate engineering to fit size, capacity, and compatibility.


8. What is biofouling and how is it prevented?
   It's the growth of marine organisms in water passages. Prevent it through coatings, screens, and regular cleaning.


9. Is keel cooling suitable for all boats?
   No, it works best for slow-moving vessels and those in colder waters.


10. How do smart sensors help in heat exchanger maintenance?
    They provide real-time data on performance, enabling predictive maintenance and reducing unexpected failures.
