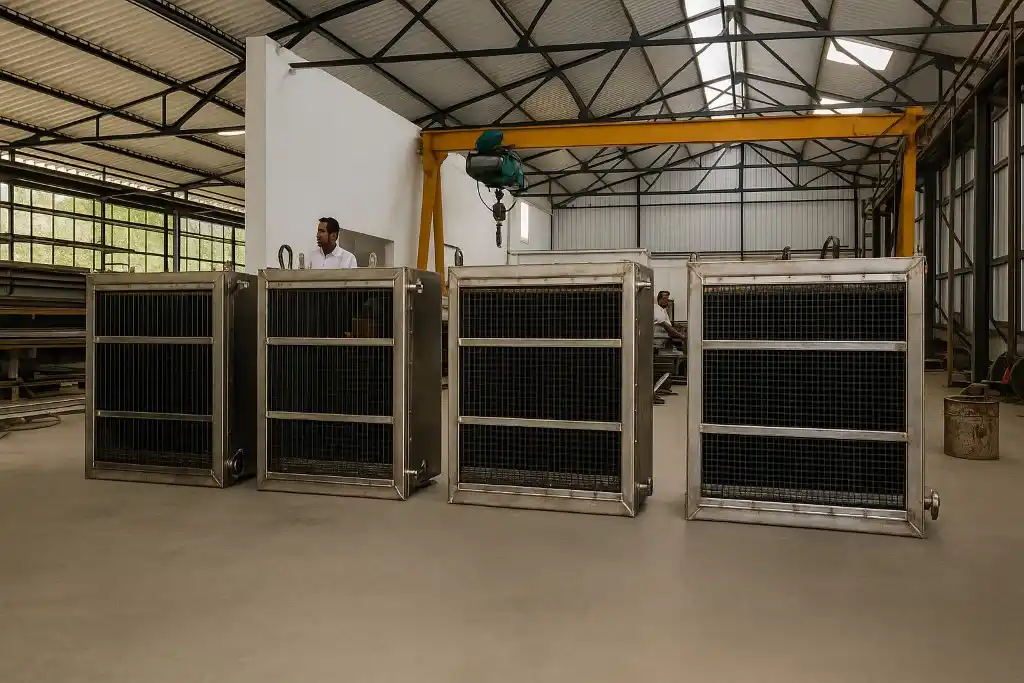

Oil Cooler Heat Exchanger

Oil cooler heat exchangers are critical components in various mechanical and industrial systems, designed to regulate the temperature of oil used in machinery, engines, hydraulic systems, compressors, and other applications. Their primary function is to dissipate heat from the oil to prevent overheating, maintain optimal viscosity, and ensure equipment efficiency and longevity. In this detailed article, we delve into the principles, types, applications, design considerations, maintenance practices, advantages, and challenges associated with oil cooler heat exchangers.

An oil cooler heat exchanger is a device used to remove excess heat from oil in engines, machines, or hydraulic systems. As machines operate, the oil inside them gets hot. If the oil becomes too hot, it can lose its ability to lubricate and protect the equipment.

Oil coolers serve as heat exchangers, removing heat from hot oil and transferring it to a cooler medium, typically air or water.

The basic process involves:

Effective oil cooling is essential because:

• When oil overheats, it deteriorates rapidly, compromising its ability to lubricate and insulate effectively.
• High temperatures can cause thermal expansion, leading to component wear or failure.
• Maintained oil temperature improves mechanical efficiency and system performance.
• It prevents oxidation, sludge formation, and contamination in hydraulic systems.



Types of Oil Cooler Heat Exchangers

Air-Cooled Oil Coolers



• Utilize the surrounding air to lower the oil temperature, typically assisted by a fan. Common in mobile equipment, automotive engines, and off-road vehicles.


• Pros: No water required, straightforward design, low-maintenance.
• Cons: Less efficient in high ambient temperatures.

Water-Cooled Oil Coolers


• Use water as the cooling medium, commonly found in marine engines, power plants, and stationary equipment.


• Pros: Higher heat transfer efficiency, compact size.
• Cons: Requires a reliable water supply, prone to corrosion if not maintained properly.

Plate-Type Oil Coolers


• Composed of several thin plates stacked together, forming flow channels for both oil and coolant.


• Pros: High thermal efficiency, compact design.
• Cons: Sensitive to fouling, difficult to clean manually.

Shell and Tube Oil Coolers


• Feature a series of tubes enclosed within a cylindrical shell, with oil flowing through the tubes and coolant circulating around them.


• Pros: Durable, suitable for high-pressure systems.
• Cons: Larger footprint, requires periodic cleaning.

Brazed Plate Heat Exchangers


• A variation of plate-type heat exchangers where plates are brazed together with copper or nickel.


• Pros: Leak-proof, high efficiency, suitable for compact systems.
• Cons: Not suitable for dirty or particulate-laden fluids.



Applications of Oil Cooler Heat Exchangers

Automotive and Transportation

Engine oil coolers prevent overheating during prolonged or high-performance operations.

Transmission oil coolers in trucks and race cars enhance gear system life.

Marine Industry

Used in ship propulsion systems and auxiliary equipment to manage oil temperatures.

Hydraulic Systems

Essential in construction machinery, industrial presses, and cranes to dissipate heat generated during operation.

Power Generation

Used in gas turbines, diesel engines, and transformers.

Industrial Manufacturing

Cooling oils in plastic injection molding, machining operations, and gearboxes.




Design Considerations

• Heat Load
  • Calculated based on oil flow rate, temperature rise, and system duty cycle.
• Fluid Compatibility
  • Materials should resist corrosion and be compatible with the specific oil and cooling medium.
• Pressure and Temperature Ratings
  • The unit must be capable of handling the operating pressures and temperature extremes specific to the application.
• Space and Mounting Constraints
  • Compact or modular designs may be necessary for limited space applications.
• Flow Arrangement
  • Crossflow and counterflow designs affect thermal efficiency. Counterflow usually yields better heat transfer.
• Fouling Resistance
  • Finned and grooved surfaces can enhance heat transfer but may increase the likelihood of fouling.
• Maintenance Accessibility
  • Ease of disassembly, inspection, and cleaning is vital in choosing a cooler type.



Performance Metrics

• Heat Transfer Coefficient (U)
  • It determines the efficiency of heat transfer between the oil and the coolant.
• Pressure Drop
  • Low pressure drops are ideal to prevent pump overloads and maintain flow rates.
• Approach Temperature
  • The temperature difference between the outlet of the hot fluid and the inlet of the cold fluid. Smaller values indicate more efficient heat exchange.
• Effectiveness
  • The ratio of actual heat transfer to the theoretical maximum heat transfer.



Maintenance and Troubleshooting

• Routine Inspection
  • Check for leaks, unusual noise, vibration, and performance decline.
• Cleaning
  • Regular cleaning of air fins or water passages to prevent fouling.
• Oil Sampling
  • Testing oil for contaminants, viscosity changes, or oxidation helps detect underlying issues.
• Pressure Checks
  • Monitoring for sudden pressure drops or rises can indicate blockages or leaks.
• Temperature Monitoring
  • By tracking the inlet and outlet temperatures, you can evaluate the heat exchanger's performance and determine its operational efficiency.
• Vibration and Noise Control
  • Proper mounting and regular maintenance help minimize mechanical stress and extend the lifespan of components.




Advantages of Oil Cooler Heat Exchangers

• Enhanced Equipment Lifespan: Maintains optimal operating temperature, reducing wear.
• Improved Lubrication: Viscosity remains within desirable limits.
• Energy Efficiency: Reduces energy waste from friction and overheating.
• System Reliability: Stable temperatures lead to predictable performance.
• Compact Designs: Modern exchangers offer high efficiency in small packages.
• Adaptability: Can be integrated into various systems with custom configurations.



Challenges and Limitations

• Fouling and Scaling: Especially in water-cooled systems or in dusty environments.
• Corrosion: Exposure to water or aggressive oils requires corrosion-resistant materials.
• Pressure Losses: Improper design can lead to high pressure drops, affecting flow.
• Maintenance Downtime: Some systems require disassembly for thorough cleaning.
• Initial Cost: High-quality, efficient exchangers may involve significant capital investment.



Technological Advancements

• Smart Monitoring: Sensors track temperatures, pressure, and flow, integrating with control systems.
• Advanced Materials: Use of stainless steel, titanium, and advanced composites for corrosion resistance.
• Microchannel Technology: Enables compact designs with higher surface area-to-volume ratios.
• Additive Manufacturing: Custom heat exchangers with optimized geometries for specific applications.



Environmental Considerations




• Enhancing system efficiency: Reduces energy consumption.
• Prolonging oil life: Minimizes waste and replacement.
• Enabling cleaner, cooler operation: Reduces environmental impact.



Conclusion


Oil cooler heat exchangers are indispensable in modern engineering, playing a pivotal role in thermal management and efficiency. From automobiles to power plants, their ability to maintain oil within ideal temperature ranges ensures reliability, reduces downtime, and improves performance. As technology advances, the adoption of smarter, more compact, and efficient cooling solutions will continue to rise, supporting increasingly complex systems. Understanding the various types, applications, and design considerations of oil coolers enables engineers and technicians to make informed decisions that enhance productivity and sustainability across industries.




Frequently Asked Questions (FAQs)




1. How does an oil cooler heat exchanger differ from a radiator?


   While both are heat exchangers, radiators typically cool water or coolant for engines, whereas oil coolers are specialized for high-viscosity oils in machinery and hydraulic systems.

2. When should an oil cooler be used?

   Whenever the system’s oil temperature exceeds safe operational limits, or in systems that operate under heavy loads and high temperatures.

3. Can oil coolers be repaired?

   Yes, depending on the type. Plate and shell-and-tube models can often be serviced, cleaned, or have individual components replaced.

4. How long does an oil cooler last?

   Typically 10–20 years, depending on usage, maintenance, and environmental conditions.

5. What causes oil cooler failure?

   Common causes include clogging, corrosion, vibration fatigue, improper fluid compatibility, and thermal cycling.

6. Are there universal oil coolers?

   While some aftermarket coolers offer flexible installation, most systems benefit from units sized and designed for specific operating parameters.

7. What maintenance is required for oil coolers?

   Routine inspection, cleaning (air fins or water tubes), oil sampling, and pressure checks to ensure system integrity and performance.

8. Can an oil cooler improve fuel efficiency?

   Indirectly, yes. By reducing mechanical friction and maintaining optimal lubrication, the engine or system operates more efficiently.

9. Do oil coolers require pumps?

   Some systems use dedicated pumps, while others rely on existing oil circulation systems. Design varies by application.

10. Can oil coolers be customized?

    Absolutely. Manufacturers offer custom designs to meet specific flow, temperature, size, and mounting requirements.
