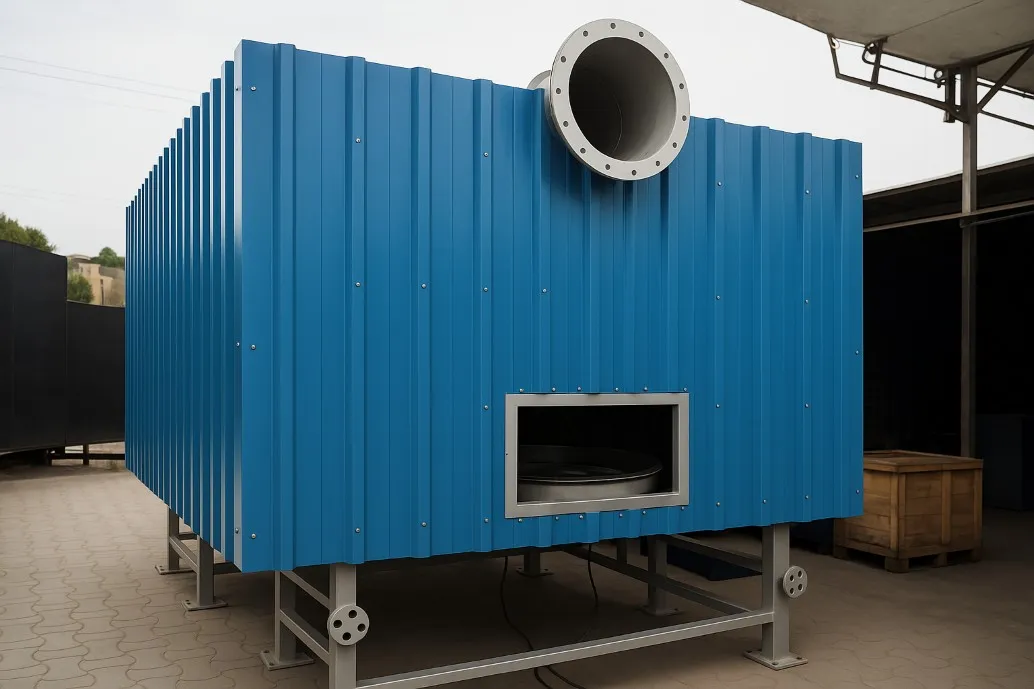

Air Cooled Condenser

An Air Cooled Condenser is a type of heat exchanger where the working vapor—usually steam—is condensed by ambient air without using any water. It transfers latent heat from the steam to the air via a series of finned tubes, condensing the vapor into a liquid. In power plants, ACCs are often installed in dry cooling systems where they act as the main condenser in the Rankine cycle, discharging the condensed water back to the boiler.

The process begins with saturated or superheated steam entering the condenser tubes.

As air is blown over the external surface of the finned tubes by axial fans, it absorbs the heat of condensation.
This results in:

• A temperature gradient between the hot steam and the cooler ambient air.
• Steam undergoes condensation within the tubes, forming liquid water.
• Heat transfer via conduction through the tube wall and convection via air flow.

Key concepts:

• The phase change occurs inside the tube (condensation).
• Heat is rejected to ambient air via fins (sensible heat transfer).

Finned Tube Bundles

Steam flows inside the tubes; fins enhance external surface area.
Constructed from carbon steel tubes fitted with aluminum or copper fins.

Axial Fans

High-efficiency, large-diameter fans force air across the finned surfaces.
Driven by electric motors with direct or gearbox coupling.

Steam Ducting and Headers

Distribute steam uniformly to each tube bundle.
Designed to minimize pressure drop and flow maldistribution.

Condensate Collection System

Collects the condensate at the bottom and returns it to the feedwater system. Includes hot wells, pumps, and condensate lines.

Support Steel Structure

Elevates the entire ACC above ground to maximize airflow.
Includes walkways and access platforms for maintenance.

• Direct Dry ACCs
  • The most common type.
  • Steam is condensed by water in a surface condenser, which is then cooled by air in a dry cooler.
  • Used in power plants as the main surface condenser.
• Indirect Dry ACCs
  • Use an intermediate closed-loop water circuit.
  • Steam is condensed in a surface condenser by cooling water, which is later cooled by air in a dry cooler.
  • Less efficient but can help manage temperature swings.
• Modular or Packaged ACCs
  • Compact, pre-assembled units for small and medium applications.
  • Used in industrial and commercial refrigeration or small power systems.

• Heat Load
  • This value represents the amount of latent heat to be removed from the steam, calculated using Q = m · hfg.
  • Determined by the steam mass flow rate and the enthalpy change during condensation.
• Condensing Pressure
  • Dependent on ambient air temperature and the effectiveness of the heat exchanger.
  • Lower condensing pressures improve efficiency but require enhanced heat transfer performance.
  • High ambient temperature can raise backpressure and reduce turbine output.
• Air Flow Rate
  • Must be sufficient to remove heat from fins.
  • Fan sizing is based on air-side pressure drop and thermal duty.
• Fin Efficiency
  • Depends on fin material, thickness, spacing, and geometry.
  • Higher fin efficiency increases thermal transfer but also increases pressure drop.
• Tube Configuration
  • Usually horizontal, with steam inside and air over the fins.
  • Tube diameter and pitch should be carefully optimized to balance heat transfer efficiency and pressure drop.

• Heat Transfer Coefficient (U): Measure of heat exchange efficiency.
• Backpressure (Condenser Pressure): Directly affects turbine output.
• Air-Side Pressure Drop: Influences fan power requirements.
• Condensate Temperature: Indicates how effectively steam is being condensed.

• Thermal Power Plants: Used in combined cycle and Rankine cycle plants for steam condensation.
• Ideal for Arid Regions: Particularly effective in areas where water use is restricted.
• Renewable Energy Plants: Concentrated solar power (CSP) and biomass plants use ACCs to cool working steam.
• Industrial Processing: Refineries and chemical plants with steam ejector systems or vacuum condensers.
• Refrigeration and HVAC: Small ACC units used in ammonia refrigeration or HVAC for air conditioning plants.

• Water Conservation: No water consumption, essential in water-scarce areas.
• Environmental Compliance: No cooling tower blowdown or thermal pollution.
• Modular Construction: Easy transportation and installation, especially in remote sites.
• Low Operating Cost: Eliminates water treatment and water pumping systems.
• Scalability: Suitable for small-scale units to large 100–500 MW power stations.

• Weather Dependence: Efficiency decreases in hot weather due to lower temperature gradients.
• High Fan Power: Air-side resistance requires large fans, increasing energy consumption.
• Large Footprint: Requires more space compared to water-cooled condensers.
• Higher Backpressure: May reduce turbine efficiency compared to wet cooling.
• Noise and Vibration: Large fans generate sound; noise control is necessary in populated areas.

• Fan and Motor Inspections: Bearings, alignment, and vibration monitoring.
• Fin Cleaning: Airborne dust and debris can clog fins, reducing airflow and efficiency.
• Tube Integrity Checks: Monitor for corrosion, scale, or leakage.
• Steam Trap Maintenance: Prevents water accumulation and ensures proper condensate removal.
• Structural Inspections: Corrosion, metal fatigue, and loose connections.

• Variable Frequency Drives (VFDs): Control fan speed based on real-time thermal load. Saves energy and allows for quieter operation.
• Hybrid Cooling: Combines air and water systems for enhanced efficiency during peak heat.
• Anti-Fouling Coatings: Specialized coatings help prevent fouling and accumulation of dirt, improving the efficiency and lifespan of fins and tubes.
• Advanced Control Systems: IoT and PLC-based systems enable real-time monitoring, predictive maintenance, and optimization of performance to ensure long-term reliability.
• Sound Dampening Technology: Special blade designs and enclosures reduce operational noise.

• Steam Flow Rate and Pressure: Essential for determining the required heat transfer capacity.
• Ambient Temperature Range: Impacts the efficiency and performance of the ACC.
• Available Space: Determines the size and configuration of the ACC unit.
• Noise Limitations: Important for minimizing environmental and operational noise impact.
• Power Consumption Limits: Affects the energy efficiency of the fan and motor systems.
• Integration with Turbine or Process Load: Ensures compatibility and efficient operation with the overall system.
• Total Lifecycle Cost: Consider the ongoing operational and maintenance costs, not just the capital cost.

Air Cooled Condensers represent a sustainable and efficient solution for condensing steam or vapor in water-stressed or environmentally regulated areas. As industries move toward more eco-friendly and cost-effective operations, ACCs are increasingly being adopted across energy, industrial, and commercial sectors. While they come with challenges such as higher fan power and weather dependency, modern innovations and better design practices are mitigating these concerns. With proper sizing, control, and maintenance, ACCs offer a long-lasting, low-maintenance, and environmentally sound alternative to traditional water-based condensing systems.

1. What is the difference between an Air Cooled Condenser and an Air Cooled Heat Exchanger?
   An Air Cooled Condenser condenses a vapor (usually steam) into a liquid by rejecting latent heat, while an Air Cooled Heat Exchanger typically exchanges sensible heat between two fluids without a phase change.
2. Can ACCs be used in high-humidity environments?
   Yes, but performance may reduce due to lower air density. Careful sizing and possibly hybrid solutions may be needed to maintain efficiency.
3. How much space does an ACC require?
   A large-scale ACC for a 100 MW plant may require several thousand square meters. Modular designs can help optimize layout in constrained areas.
4. Are Air Cooled Condensers more expensive than water-cooled systems?
   While capital costs are generally higher, total lifecycle costs are lower due to savings on water, chemicals, and maintenance.
5. How is condensate managed in an ACC?
   Condensate is collected at the bottom of the tube bundles and pumped back to the boiler or process cycle. It may pass through a deaerator to remove non-condensable gases.
